General
Product Type

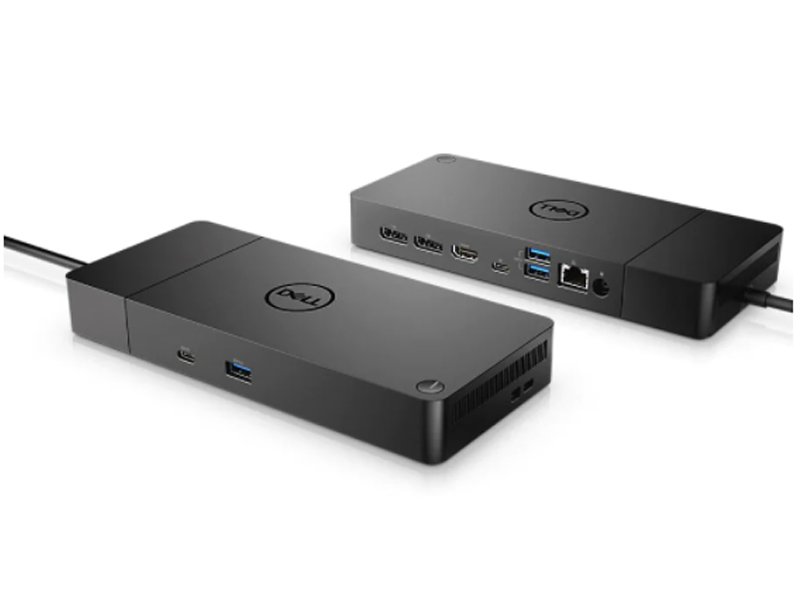

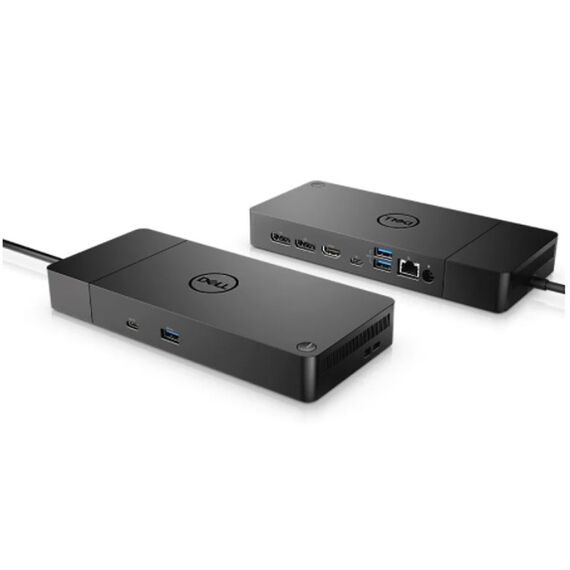

Docking station
Width
8.1 in
Depth
3.5 in
Height
1.1 in
Weight
20.63 oz
Enclosure Color
Black
Video
Max Resolution Details
3840 x 2160 - 60 Hz (DisplayPort 1.4 over USB-C)
3840 x 2160 - 30 Hz (DisplayPort 1.2 over USB-C)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Interfaces
- 2 x display / video - DisplayPort - 20 pin DisplayPort
- 1 x display / video - HDMI - 19 pin HDMI Type A
- 1 x USB-C
- 3 x USB 3.1 Gen 1 - 9 pin USB Type A
- 2 x USB-C 3.1 Gen 2
- 1 x network - Ethernet 1000 - RJ-45
Miscellaneous
Cables Included
1 x USB-C cable - 3.3 ft
Features
Security lock slot (cable lock sold separately), 90W power delivery to Dell systems, 90W power delivery to non-Dell systems, wireless vPro
Security Slot Type
Noble Wedge security slot / Kensington security slot
Power
Power Device
Power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
130 Watt
WD19S is also compatible with notebooks from other manufacturers such as HP and Lenovo which support industry standards for USB-C docking.
