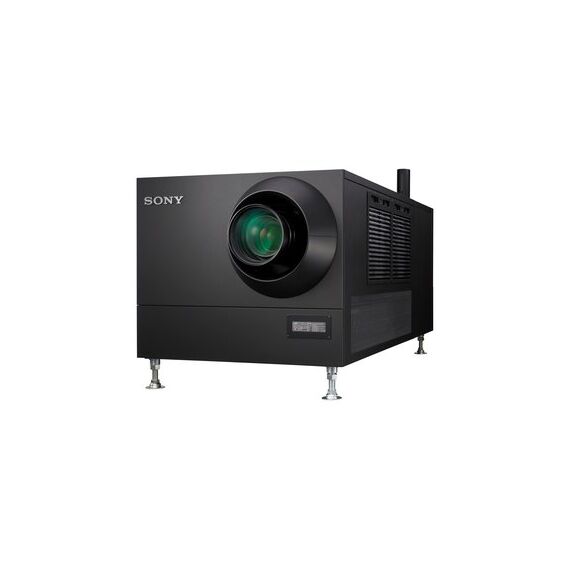

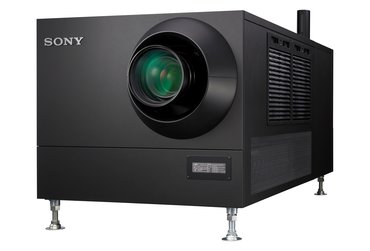

The SRX-R320P system is a floor standing 4K (4096 x 2160 pixel) projection system intended for theater exhibition. The SRX-R320P model name encompasses the entire system, not just the projector. This includes SRX-R320P Projector Head, LMT 300 Media Block (1.7TB Storage Capacity), STM-100 Theater Management System, Projectionist Terminal, and Enclosure Security System. The system also includes HDSDI and DVI inputs for alternate content. The SRX-R320P projector is equipped with three Silicon X-tal Reflective Display (SXRD™) devices, delivering more than four times the resolution of full HDTV (1920 x 1080), achieving a high contrast ratio of 2000:1. There are four models of lenses available for this projector and a single lamp system. With 4.2kW lamp, SRX-R320P achieves 14ft-L on 20-meter wide screen.Lenses can be selected using the SRX lens calculator available from marketing or from the SRX web site. The system is very heavy and it is highly recommended that field service install it. Dimensions are 27.5 inches wide, 29.9 inches tall, and 49.2 inches deep. Lamps and lens must be installed on site by qualified installers. Lamps are shipped separately as hazardous materials.
Weight429 lb (195 kg) (excluding an optional lamp and a lens)
Dimensions (W x H x D)27 5/8 x 25 1/4 x 49 1/4 inches (700 x 640 x 1250 mm)
(excluding a touch-panel display and projecting parts of the unit such as a status light and a chimny)
Power RequirementsAC 200 V to 240 V, 50/60 Hz, single-phase, 27 A to 22.5 A
Power ConsumptionMax. 5.4 kW (USHIO DXL-40SRX 4.2 kW lamp)
Max. 4.2 kW (3.0 kW lamp)
Max. 3.0 kW (2.0 kW lamp)
Input SignalMedia Block input (x2): 4096 x 2160 pixels
HD-SDI/Dual-link HD-SDI*: 1920 x 1080 pixels (SMPTE-372M/SMPTE-292M/ITU-R.BT709/BTA-S004)
DC-SDI/Dual-link DC-SDI*: 2048 x 1080 pixels
12 bit/X’Y’Z’ (with Dual-link HD/DC-SDI Input Board)
DVI-D: XGA (1024 x 768), SXGA1 (1280 x 960),
SXGA2 (1280 x 1024), SXGA+ (1400 x 1050),
UXGA (1600 x 1200), WUXGA (1920 x 1200),
HD (1920 x 1080), DC (2048 x 1080)
Operating Humidity35% to 85% (no condensation)
Operating Temperature41 °F to 95 °F (5 °C to 35 °C)
Storage Temperature12 °F to 140 °F (-20 °C to +160 °C)
Optical SpecificationsDetail:
Projection System3-SXRD panel, prism color integrated system
Light Output21000 lumens (average, USHIO DXL-40SRX 4.2 kW lamp)
Lamp4.2 kW Xenon lamp (x1) or 3.0 kW Xenon lamp (x1) or 2.0 kW Xenon lamp (x1)
Image DeviceSXRD, 1.55-inch (diagonal), 4096 (H) x 2160 (V) pixels on each chip
Screen Coverage4.5-meter (15-foot) to 15-meter (56-foot) screen width on Scope size (USHIO DXL-40SRX 4.2 kW lamp and LKRL-A001 anamorphic lens)
4.5-meter (15-foot) to 13-meter (43-foot) screen width on Scope size (3.0 kW lamp)
4.5-meter (15-foot) to 10-meter (35-foot) screen width on Scope size (2.0 kW lamp)
Input/Output SpecificationsDetail:
Input ADVI-D (HDCP)
Input BOpen (option slot for the LKRI-003 or LKRI-005 board)
Input CA channel: MDR- 68-pin (x1) (for projector output A of Media Block, SRLV connection)
B channel: MDR- 68-pin (x1) (for projector output B of Media Block, SRLV connection)
InterlockD-sub 15-pin (female) (x1), RS-232C For supply of power to an external ventilation fan and control of its operation
Remote ControlD-sub 15-pin (female) (x1), RS-232C
RJ-45 (x1), 10BASE-T/100BASE-TX Ethernet
DCP ingest port (x1)
Other SpecificationsDetail:
Safety Regulations[UL60950 listed], [cUL60950], [FCC Class A],
[IC Class A], [VCCI Class A], [EN60950], [CE Class A],
[C-tick], [CISPR22], [CISPR24]
