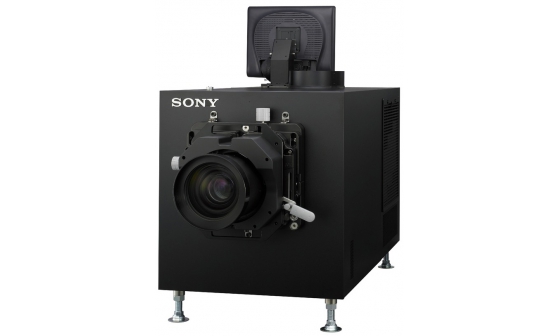

The SRX-R515 is a high quality 4K digital cinema projection system.
General SpecificationsDetail:
Dimensions (W x H x D)W548 x H634 x D1119 mm*1
Power RequirementsAC 200 to 240V, 50-60Hz, Single-phase, 21.5A to 18A
Power Consumption450W lamp: Max. 4.3kW 330W lamp: Max. 3.2kW
Optical SpecificationsDetail:
Resolution4096 x 2160
Light Output15,000 lm (450W lamp) / 11,000 lm (330W lamp)
Lamp6 x HPM lamps*
Image Device3 x 1.48 inch 4K SXRD
Contrast Ratio8,000:1
Other SpecificationsDetail:
Safety Regulations[Digital Cinema Projector SRX-R515] VCCI Class A, UL 60950-1, CSA C22.2 No.60950-1, FCC/IC Class A Digital Device, IEC 60950-1, EN 60950-1, EN 55022 Class A + EN 55024, EN 61000-3-11 + EN 61000-3-12, AS/NZS CISPR22 (EN 55022) Class A [Digital Cinema Server XCT-S10] VCCI Class A, UL 60950-1, CSA C22.2 No.60950-1, FCC/IC Class A Digital Device, IEC 60950-1, EN60950-1, EN 55022 Class A + EN 55024, EN 61000-3-2 + EN 61000-3-3, AS/NZS CISPR22 (EN 55022) Class A [Touch Panel Monitor LKRA-007] VCCI Class A, FCC/IC Class A Digital Device, EN 55022 Class A + EN 55024, AS/NZS CISPR22 (EN 55022) Class A
