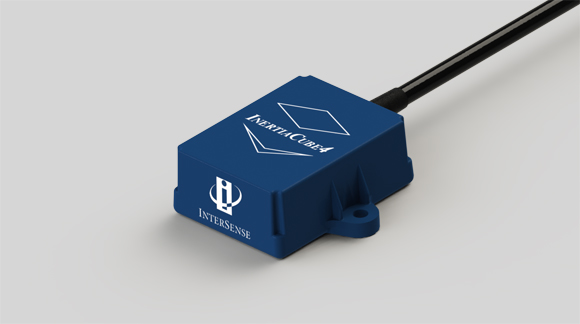

The InertiaCube4 offers superior performance over its predecessors while minimzing size and price. The sensor is ideal for real-time applications in simulation & training, virtual & augmented reality, motion capture, and human movement analysis.
The InertiaCube4 integrates the latest in MEMS inertial technology and utilizes advanced Kalman filtering algorithms to produce a full 360° sourceless orientation tracking sensor.
Key Features
- Sourceless 3DOF tracking with full 360° range
- Accuracy of 1° yaw, 0.25° pitch & roll
- 200 Hz update rate
- 2000° maximum angular rate
- Adjustable output filters and rotational sensitivity
- In-situ and environmental Compass Calibration Tools for static magnetic field compensation
- Native USB and RS-232 versions available
- AHRS
Degrees of Freedom |
3 (Yaw, Pitch, and Roll) |
Angular Range |
Full 360° - All Axes |
Maximum Angular Rate* |
2000° per second |
Minimum Angular Rate* |
0° per second |
Accuracy (RMS)* |
1° in yaw, 0.25° in pitch & roll at 25°C |
Angular Resolution* |
0.01° RMS |
Update Rate |
200 Hz |
Minimum Latency |
2 ms for RS-232 (PC host OS dependent) |
Prediction |
Up to 50 milliseconds |
Serial Rate |
115.2 kbaud |
Size |
1.44 in. x 1.09 in. x 0.55 in. (36.6 mm x 27.7 mm x 13.8 mm) |
Weight |
0.39 ounces (11 grams) |
Cable Length |
15 ft. (4.572 m) for RS-232 Version 6 ft. (2.0 m) for USB Version |
Power |
6 VDC, 40 mA |
Operating Temp. Range |
0° to 50° C |
O/S Compatibility |
.dll for Windows 7/XP .so for Linux .dylib for Mac OS X |
Compliance |
CE, UL, RoHS |
