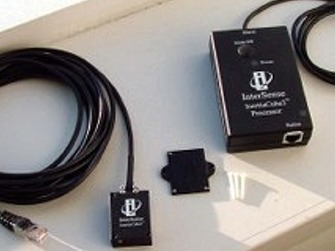

InertiaCube3

The InertiaCube3 (IC3) is designed to meet the demands of a mobile, sourceless, 3-DOF sensor.  With an aluminum package, broader operating temperature range and low power consumption, the InertiaCube3 is ideal for head or body tracking in mobile simulation, training and situational awareness applications.

World’s smallest inertial orientation reference system (26.2 mm x 39.2 mm x 14.8 mm)

Full integration of nine sensing elements ensures maximum accuracy, sensitivity and stability

Sourceless tracking provides full 360º range and eliminates line-of-sight restrictions

MagCal™ software for in-situ static, magnetic field compensation

Monolithic electronic design for superior alignment accuracy

Connects directly to the PC’s RS-232 serial connector or USB port with optional USB adaptor

180 Hertz update rate eliminates tracker induced lag

Motion prediction, adjustable rotational sensitivity and control of output data filtering allows fine tuning for specific applications

Windows 98, 2000, NT, XP, and CE dynamic link library available

Linux, IRIX and Mac OS X shared object libraries available

PC Software interfaces up to 32 InertiaCube3's to application

Windows control and connectivity software provides sensor configuration, network interface and joystick emulation

Supports a standard I2C interface bus allowing custom wireless button, indicator or analog interfaces for OEM applications
